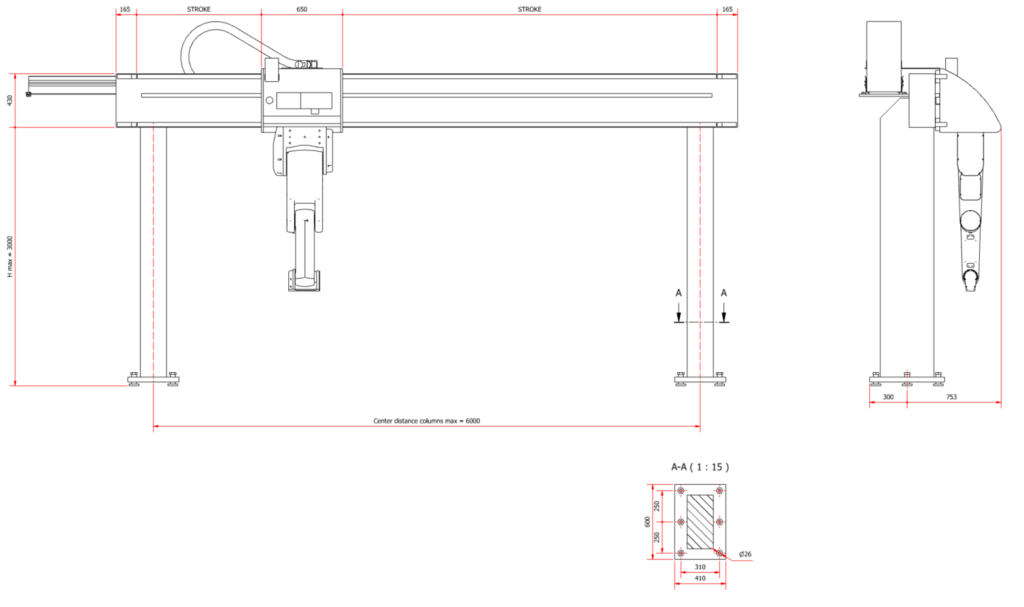

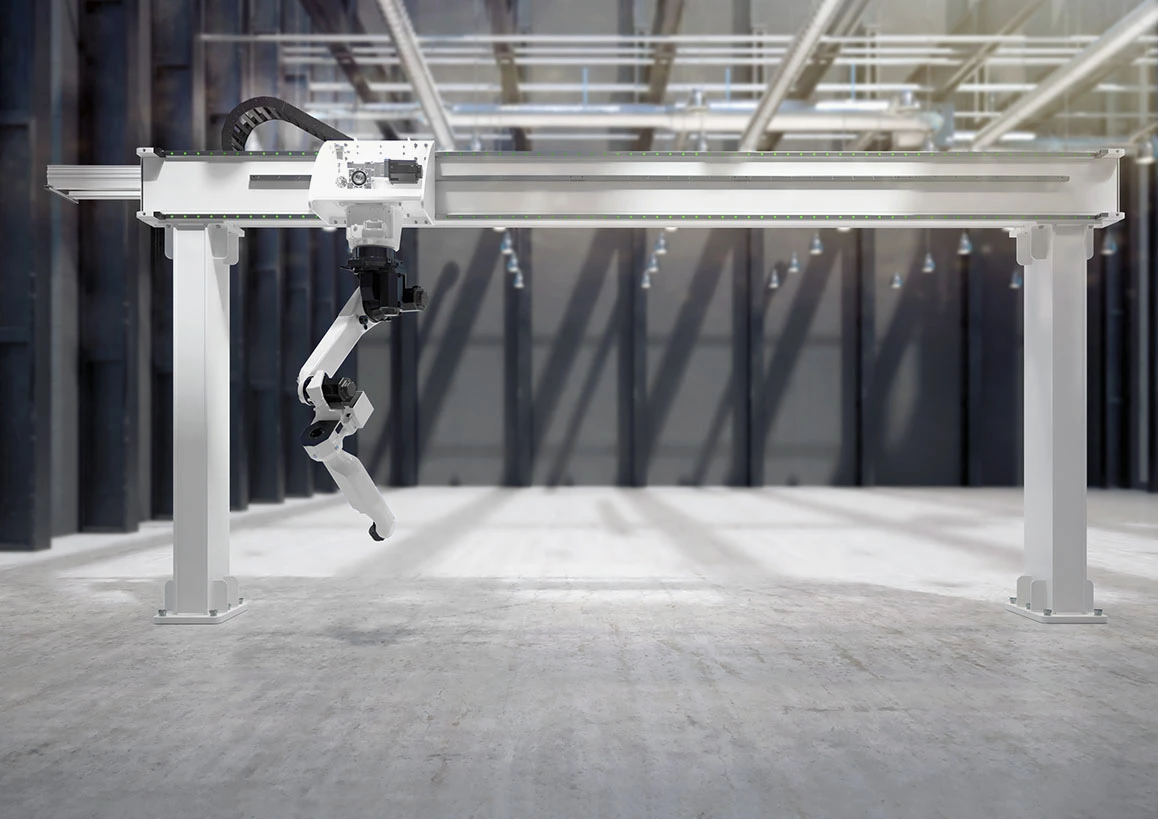

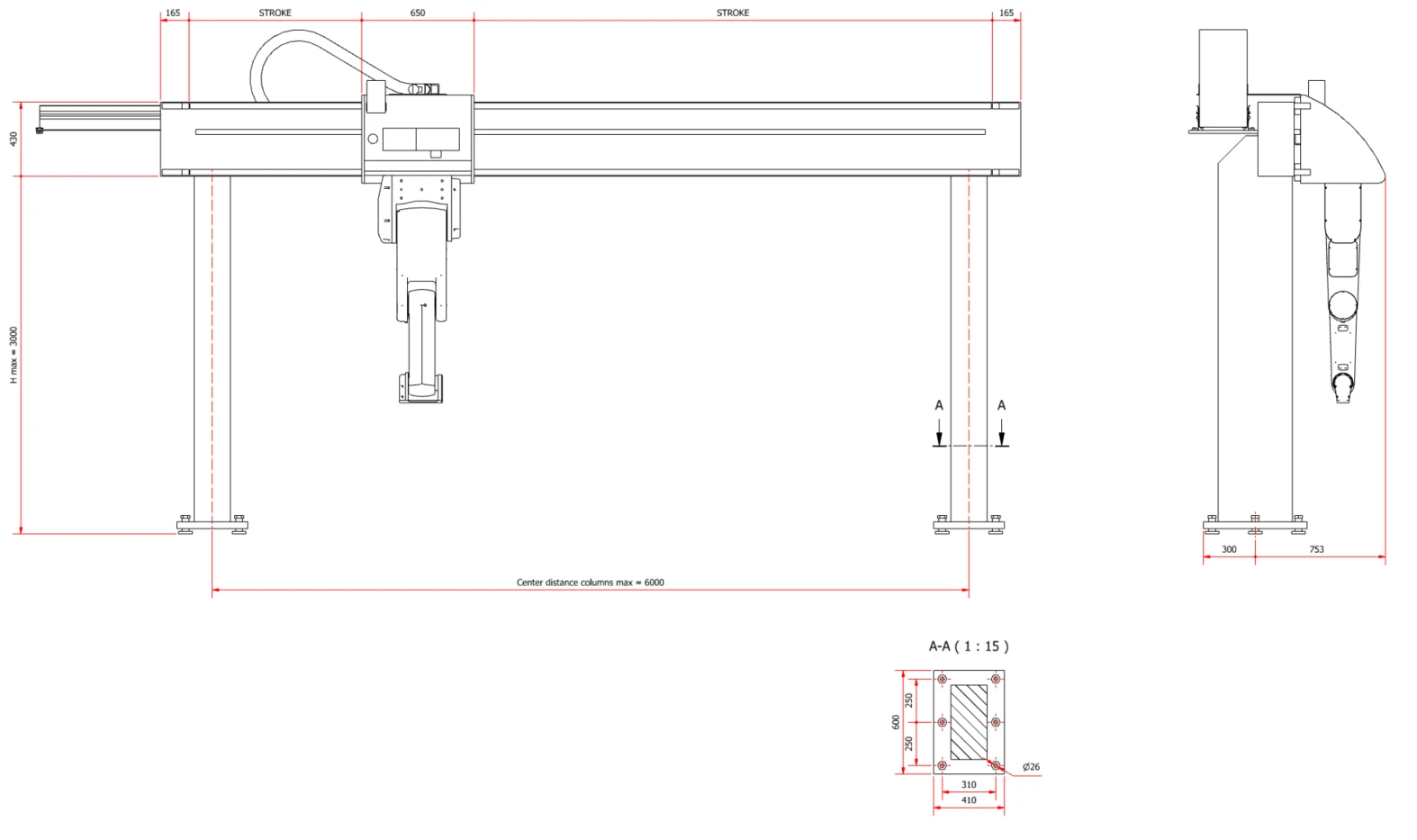

ROBOTTRACK AT35-C

Mounting position Ceiling
Mass axis 185 kg/m
Guiding rollsize 35
Driving System M3
Acceleration 2.5m/s²
Speed 2.5m/s
Suitable autonox robots
articc3-1015-15kg (AT_00017)
articc3-1035-30kg (AT_00003)
articc3-1646-60kg (AT_30005)
articc5-1759-60kg (AT_10005)
articc5-1918-45kg (AT_10010)
Suitable autonox robots
articc5-2057-30kg (AT_10006)
articc6-1803-20kg (AT_00014)
articc6-1199-3kg (AT_00011)
articc6-1557-3kg (AT_00004)
articc6-1215-6kg (AT_00025)

DOWNLOAD 3D FILE VIA CONFIGURATOR
