ALUMINIUM PROFILE

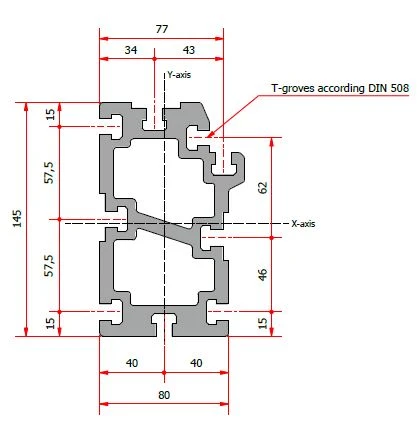

DATASHEET PROFILE VAP30
| Weight | 12,64 kg/meter |
| Material | 3.2315 – AlMgSi1 |
| Straightness | 0,35 mm/meter |
| Moment of inertia Ix | 1.024,91 cm4 |
| Moment of inertia Iy | 333,73 cm4 |
| Max length of one piece | 7.000 mm (connectable) |
| Treatment | Optional |
| T-Nut | DIN 508 M8 |
DOWNLOADS
ASSEMBLIES EXISTING

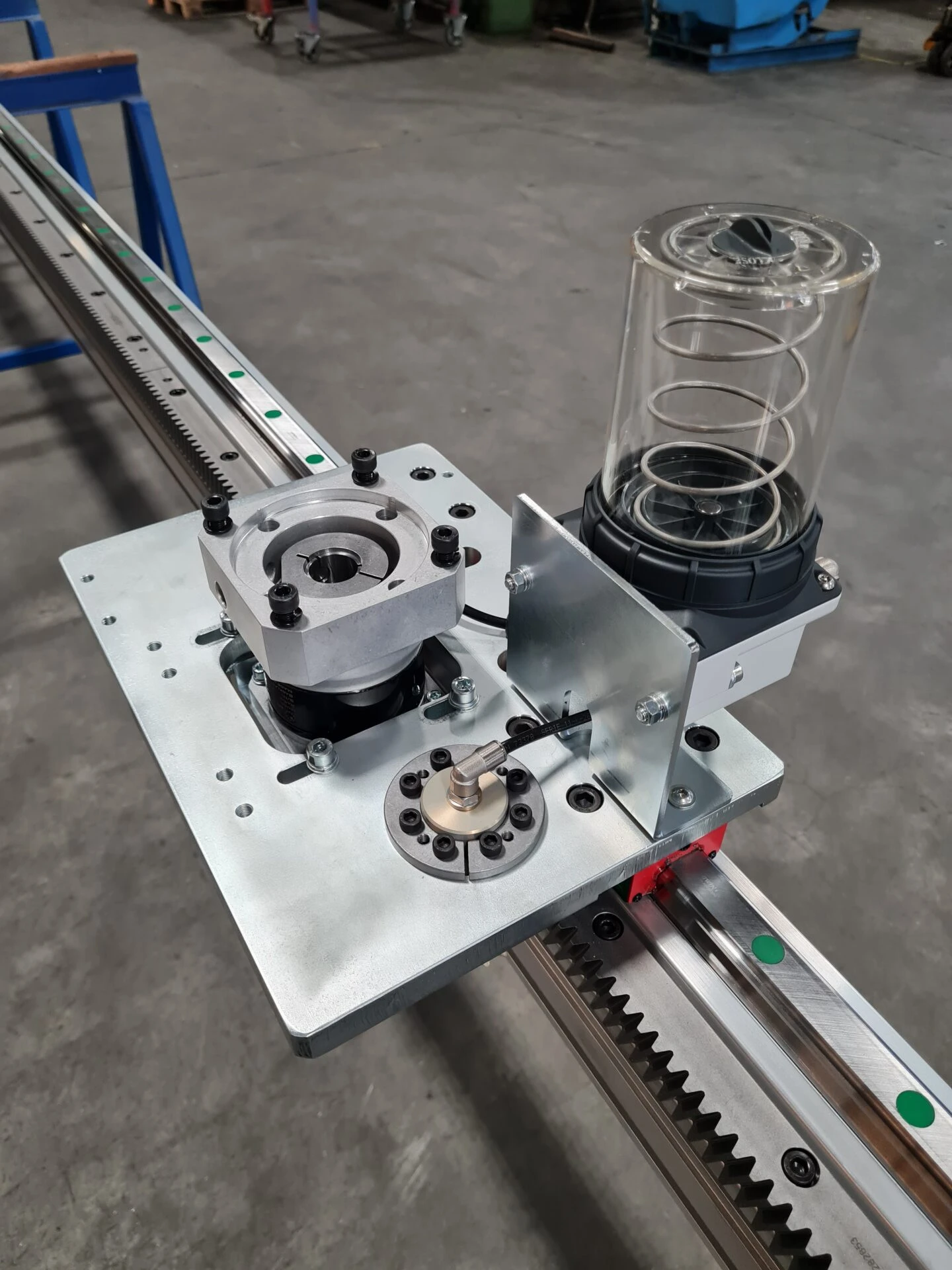

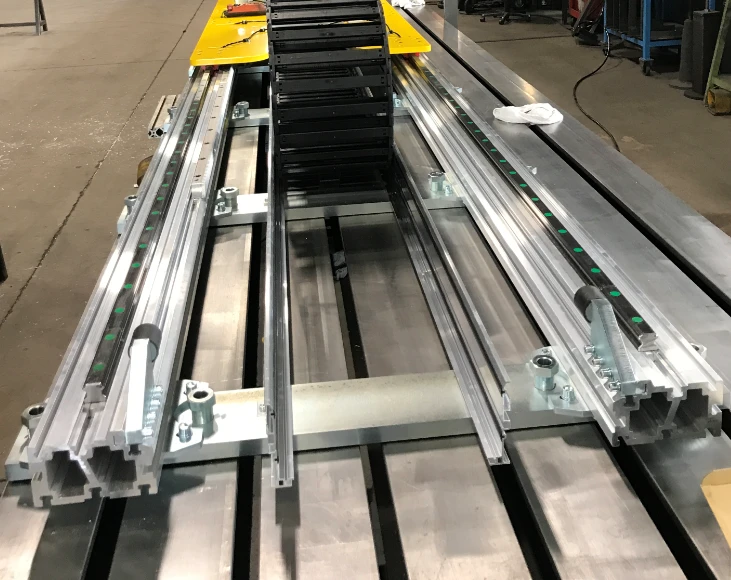

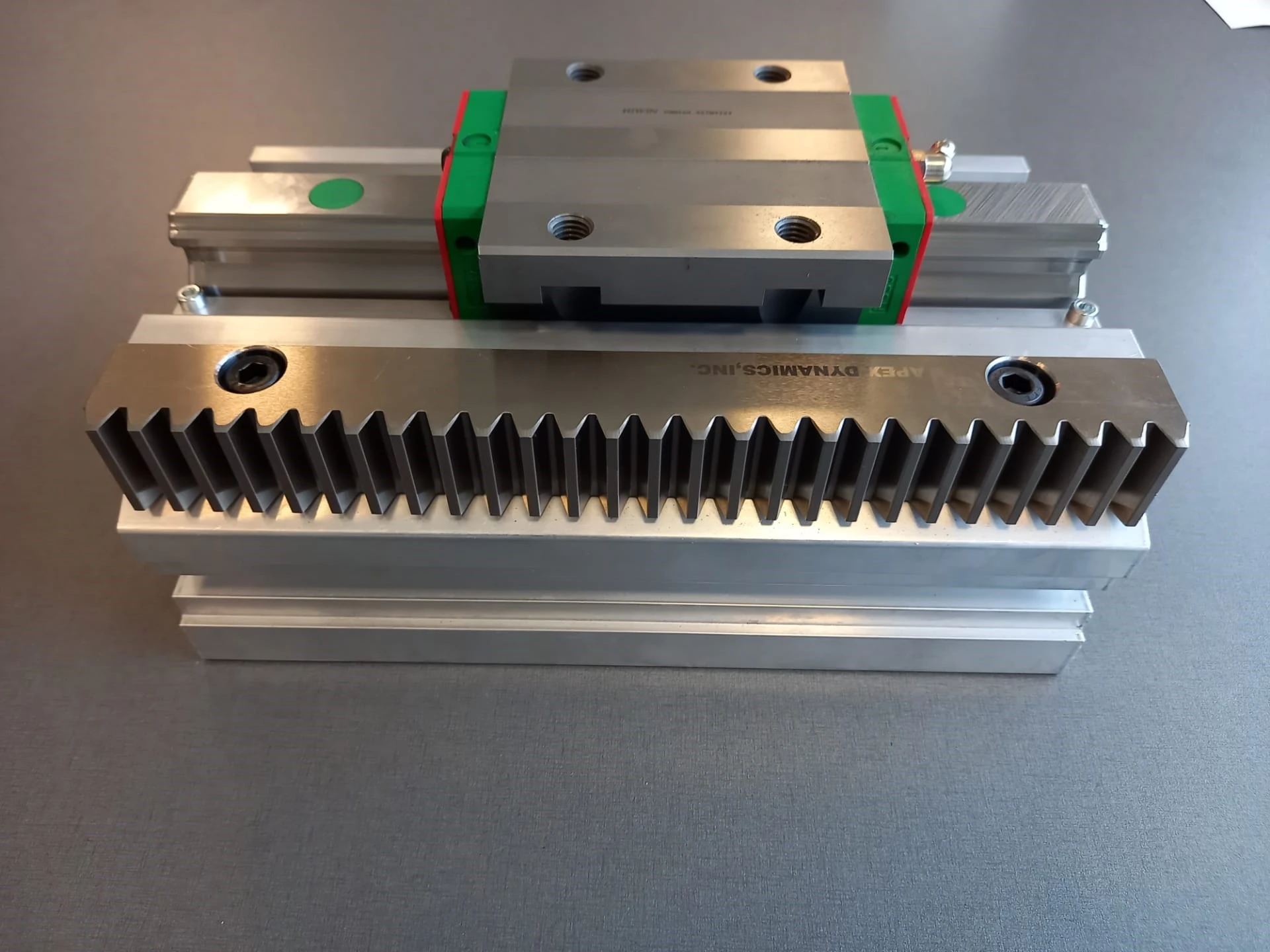

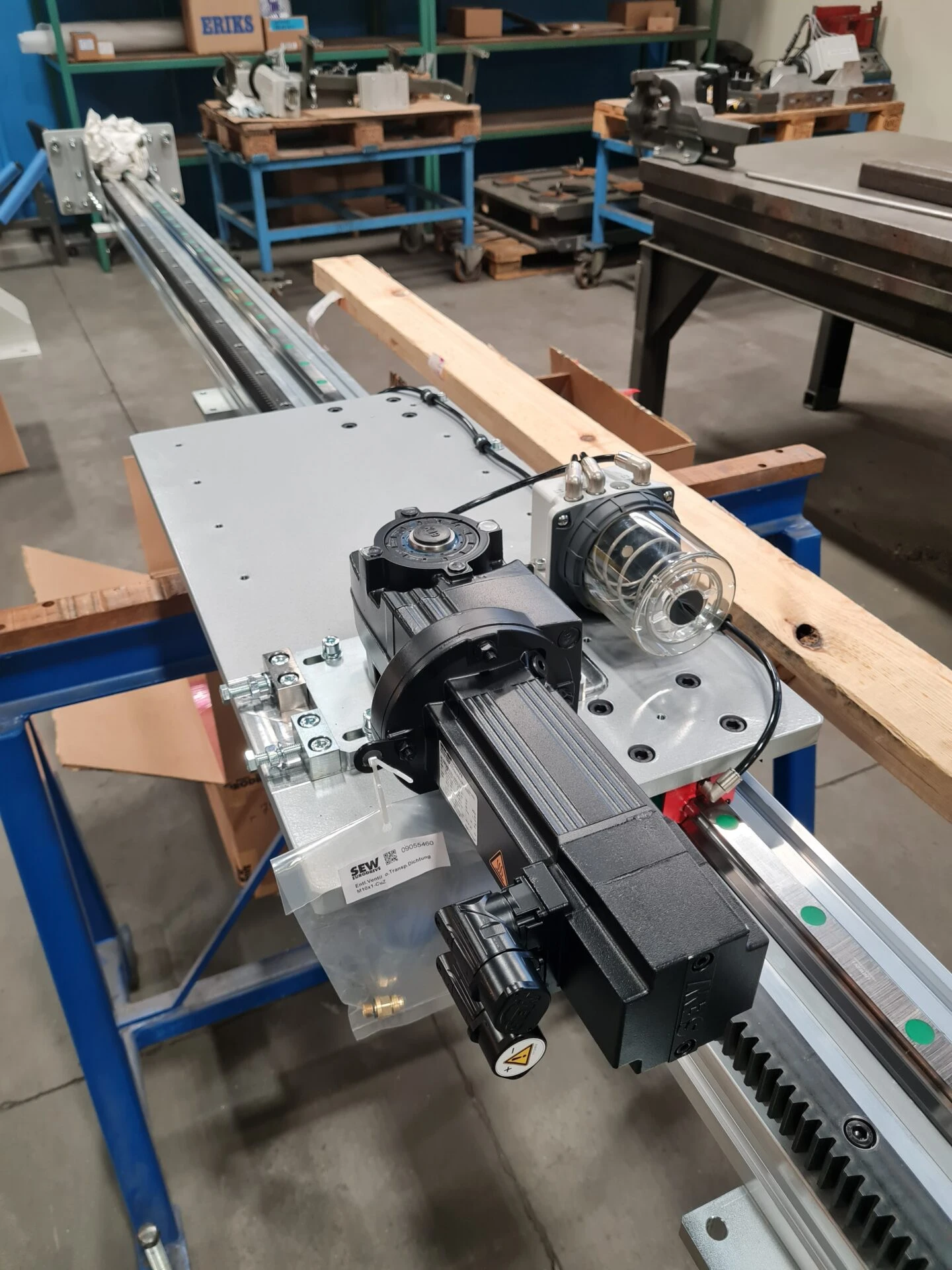

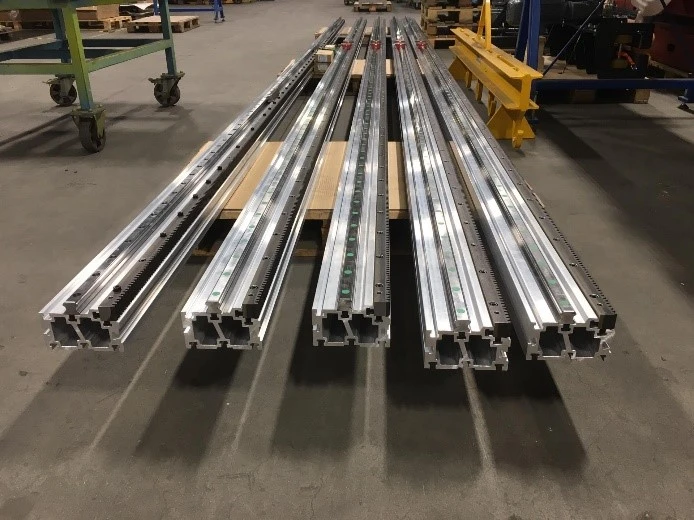

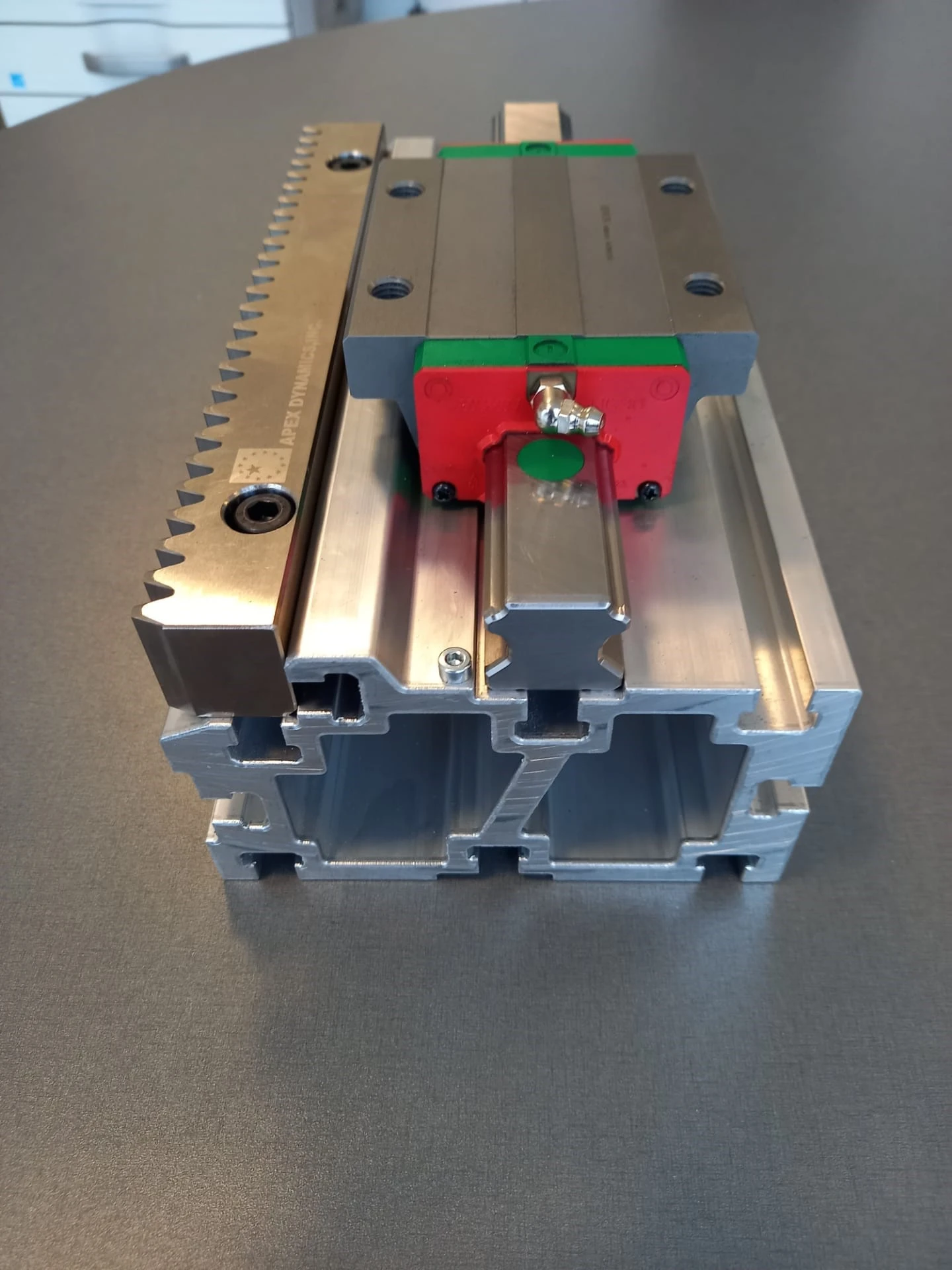

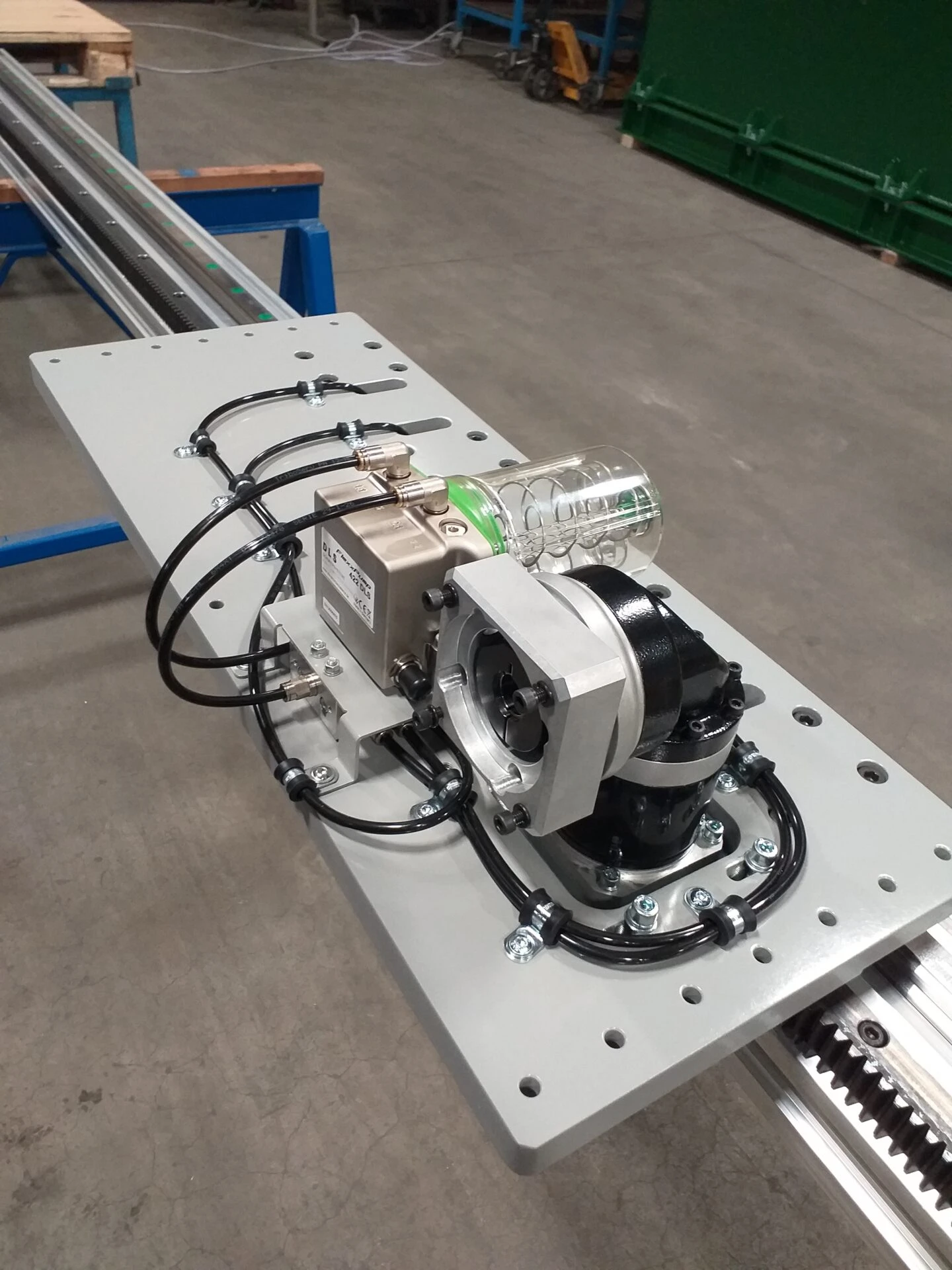

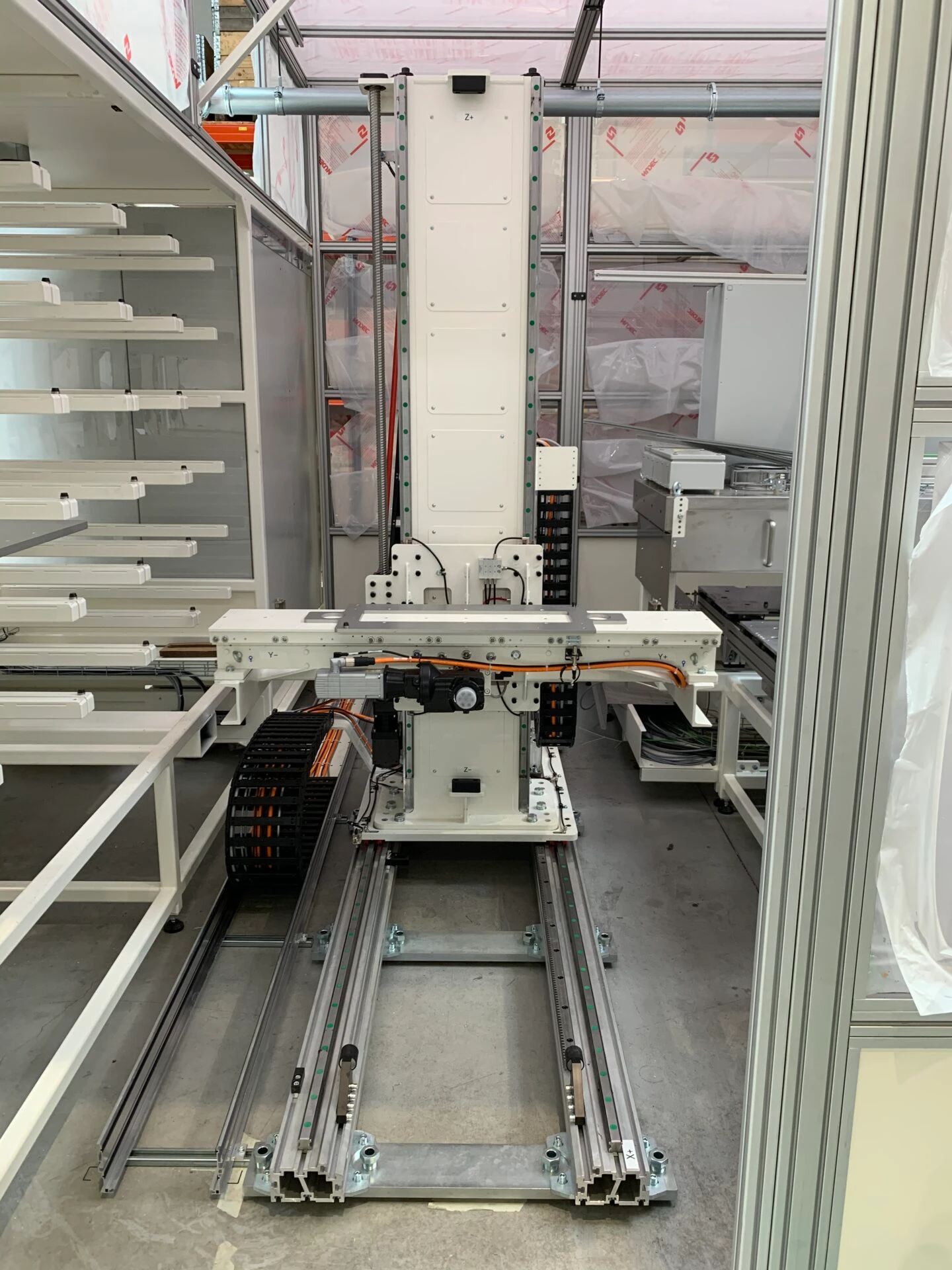

VAP30 WITH HIWIN GUIDEWAYS HGR30R AND ATLANTA RACKS M3
The VAP30 profile is only as an assembled unit available.
EXTRAS
- DIN 508 M8 T-Nut available for mounting (per 50)
- Pinion
- Atlanta straight tooth system: 24 98 320
- Atlanta helical tooth system: 24 99 320
- Mounting blocks BC 03002
OPTIONS ON DEMAND
- Stop buffers
- Connecting elements between 2 profiles in parallel
- Surface treatments
- Anodizing coating of the aluminium profile
- Coating HIWIN rails: CZS or CTS
- Straight toothed gear rack or helical toothed gear rack (M3)
- Coating on request
- Other brands of guideways and racks on request
HORIZONTAL – SETUP A
VAP30HA
HORIZONTAL – SETUP B
VAP30HB
VERTICAL – SETUP A
VAP30VA
VERTICAL – SETUP B
VAP30VB
VERTICAL – SETUP C
VAP30VC
